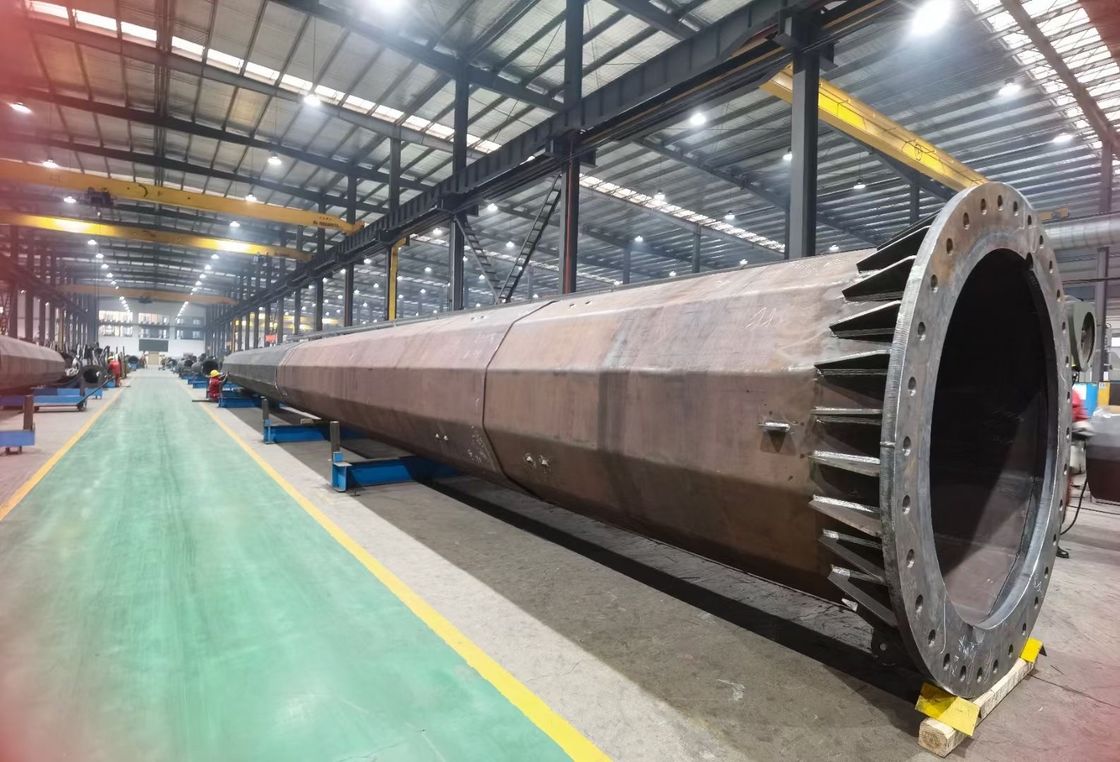

Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
  • Electric Power Pole With Flange Connection
Electric Power Pole With Flange Connection

Electric Power Pole With Flange Connection

Lugar de origen Porcelana
Nombre de la marca JSHG
Certificación ISO/CNAS/IAF/CA
Detalles del producto
Una vez que forma:
el 16m una vez que forma sin la junta
Uso:
Línea de transmisión de distribución/iluminación de calles, carreteras, autopistas, áreas comerciale
Vida útil:
Más de 25 años
Aplicación:
Alumbrado público, señales de tráfico, señalización, postes de servicios públicos.
soldadura:
La soldadura cumple con el estándar AWS D1.1.
Longitud:
Variable
Wallthickness:
Varía (comúnmente de 2 mm a 10 mm)
Tratamiento de apariencia:
DIP HOT GALVANIZADO
Garantía:
1-2 años
Acabado superficial:
Galvanización en caliente
Pago y términos de envío
Cantidad de orden mínima
un contenedor de 40 HQ
Precio
negotiable
Detalles de empaquetado
* Recubierto con envoltura de plástico o esterilla o según las solicitudes del cliente. * Los PC de
Tiempo de entrega
15 días hábiles después de firmado PI/DIBUJO/SEPCS.
Condiciones de pago
L/C, T/T o Western Union
Capacidad de la fuente
3.000 toneladas métricas por mes
Descripción de producto
Product Description:

Product Name Electric Power Pole with Flange Connection
Voltage Grade 10-220KV
Application Street, Road, Highway, Commercial Areas Lighting, etc.
Shape Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Surface Treatment Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
Can be powder coated or painted according to clients' request
Material Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Wall Thickness 2.3~18mm
Welding Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment ad your request
Life Period More than 25 years, it is according to installing environment
Joint Joint with insert mode, flange mode.

Base plate is square/round/polygon with slotted holes for anchor bolt and dimension as per client's requirement.
16m Once forming without joint.



JIANGSU HONGGUANG STEEL POLE CO., LTD.

With over 20 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Transmission Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.


Terms and Conditions:
1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, crossarm and anchor bolt.

Shipping seaport: Shanghai Seaport.

Please provide drawings if you have so that we can calculate the accurate price for you.

We also provide design according to your requests, if you don't have drawings.

2. MOQ: One 40FT Container.

3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.
